MIkrotik proxy

System requirements

To use a proxy on routers Mikrotik you should consider the following hardware requirements: 1) RouterOS at least version 7, because containerization support will be required 2) Router models having more than >128 MB RAM 3) The router must have a CPU architecture arm64,arm or x86 since virtualization is only supported on these architectures, you can learn more about this at the link

https://help.mikrotik.com/docs/spaces/ROS/pages/84901929/Container

Suitable routers currently available on the market include - hAP ax2, hAP ax3, Chateau PRO ax, RB5009,L009UiGS

Warning:

You need physical access to your RouterOS device to enable support for the container feature, it is disabled by default;

• once the container feature is enabled, containers can be added/configured/started/stopped/removed remotely!

• if your RouterOS device is compromised, containers can be used to easily install malicious software in your RouterOS device and over network;

• your RouterOS device is as secure as anything you run in container;

• if you run container, there is no security guarantee of any kind;

• running a 3rd party container image on your RouterOS device could open a security hole/attack vector/attack surface;

• an expert with knowledge how to build exploits will be able to jailbreak/elevate to root;

https://help.mikrotik.com/docs/spaces/ROS/pages/84901929/Container#Container-Disclaimer

Preparing the router

1. Installing the required package

Open the console and enter the following commands to set the update channel

/system package update set channel=stable

Then fetch the package list

/system package update check-for-updates

Enable the "container" package and reboot the router

/system/package enable container

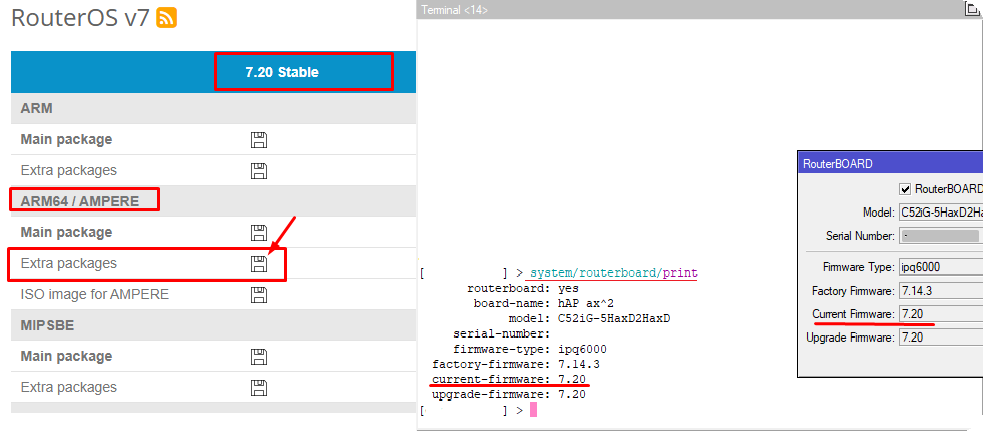

Or manually install the 'Container' package via Winbox after downloading the "Extra packages" for your version ROS and architecture from the Mikrotik site (https://mikrotik.com/download)

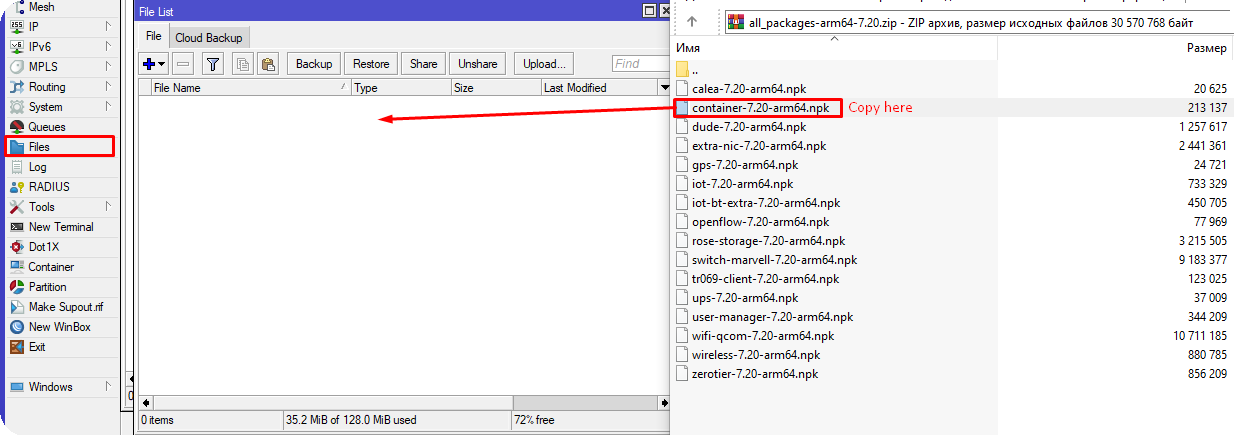

Open the downloaded archive, copy the package to the File List and reboot the device

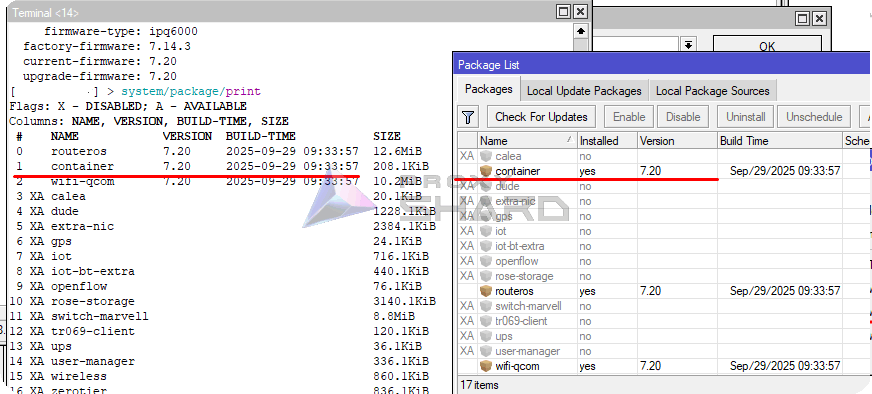

After reboot you should see the "Container" package

1. Enabling containerization support

To activate containerization on the router, enter the command in the terminal:

/system/device-mode/update container=yes

Then reboot the router within 5 minutes and after reboot you will have container creation available

You can also check via the console:

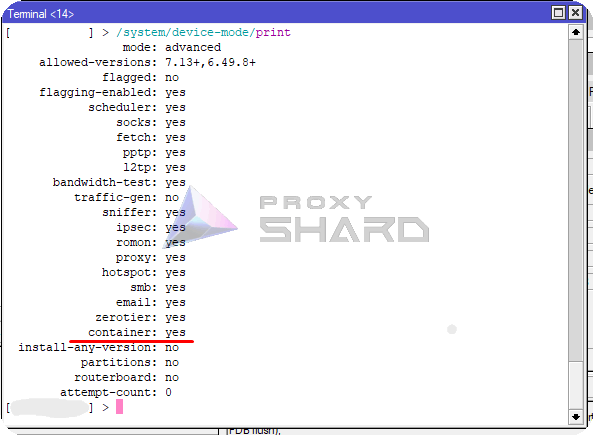

/system/device-mode/print

"Container" should be "yes"

Installing and configuring the container

Creating a VETH interface

Create a virtual interface for the future container:

/interface veth add address=10.0.201.2/24 dhcp=no gateway=10.0.201.1 gateway6="" mac-address=6D:F3:B2:85:44:45 name=veth1

Where: address - the address you want to assign to the container gateway - the address of your bridge (the network's main gateway)

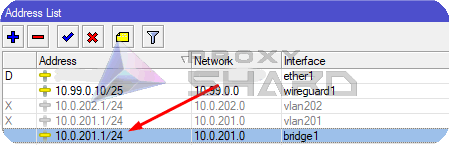

View the bridge address

For clarity we will perform all actions on the internal network, without separating the container network from the home network.

1. Adding the interface to an existing bridge

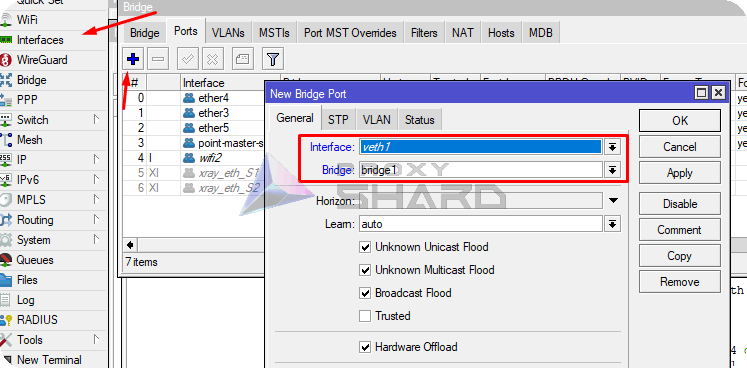

Add the created interface to the bridge

/interface bridge port
 add bridge=bridge1 interface=veth1

1. Configuring virtualization and adding the container

In this example we will use the Docker image from wiktorbgu based on hev-socks5-tunnel

Link to the Docker image

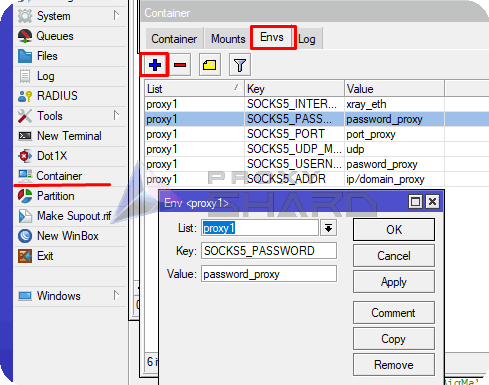

Let's create variables for the container

For the container you need to create future variables that include proxy connection parameters; to do this in the Mikrotik console add the following variables

/container envs
add key=SOCKS5_ADDR list=proxy1 value=ip/domain_proxy
add key=SOCKS5_INTERFACE list=proxy1 value=xray_eth
add key=SOCKS5_PASSWORD list=proxy1 value=password_proxy
add key=SOCKS5_PORT list=proxy1 value=port_proxy
add key=SOCKS5_UDP_MODE list=proxy1 value=udp
add key=SOCKS5_USERNAME list=proxy1 value=pasword_proxy

These fields must be filled depending on the details of the purchased order

You can see an example of proxy configuration in the "Setup instruction"

Note, the test connection is made via SOCKS5! To find out the SOCKS connection port, you need to press Show socks5 inside the order

Adding the container

Add the registry-url and a temporary folder for image downloads

/container config
set registry-url=https://registry-1.docker.io tmpdir=/tmp

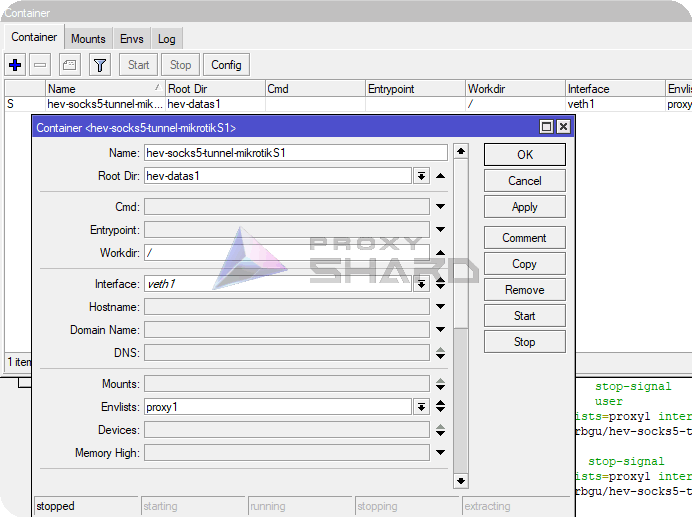

Then create the container specifying the "work dir", "interface" and other parameters

/container
add check-certificate=no envlists=proxy1 interface=veth1 name=hev-socks5-tunnel-mikrotikS1 remote-image=wiktorbgu/hev-socks5-tunnel-mikrotik root-dir=hev-datas1 workdir=/ start-on-boot=yes

Start the container

/container/start hev-socks5-tunnel-mikrotikS1

At this stage it's worth checking connectivity to the container

ping 10.0.201.2

Custom routing configuration

1. Adding routes

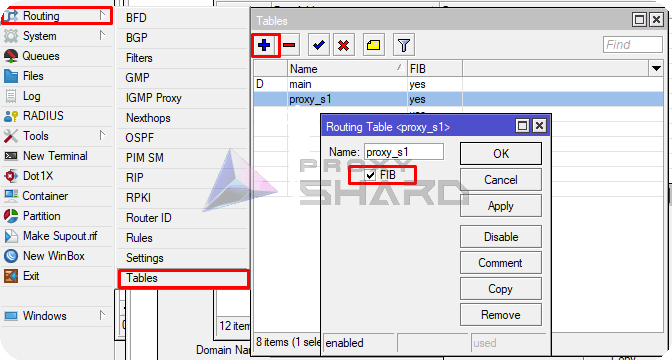

To configure precise routing for specific devices on the network or traffic to certain resources, you need to create a separate FIB

/routing/table/add name=proxy_s1 fib

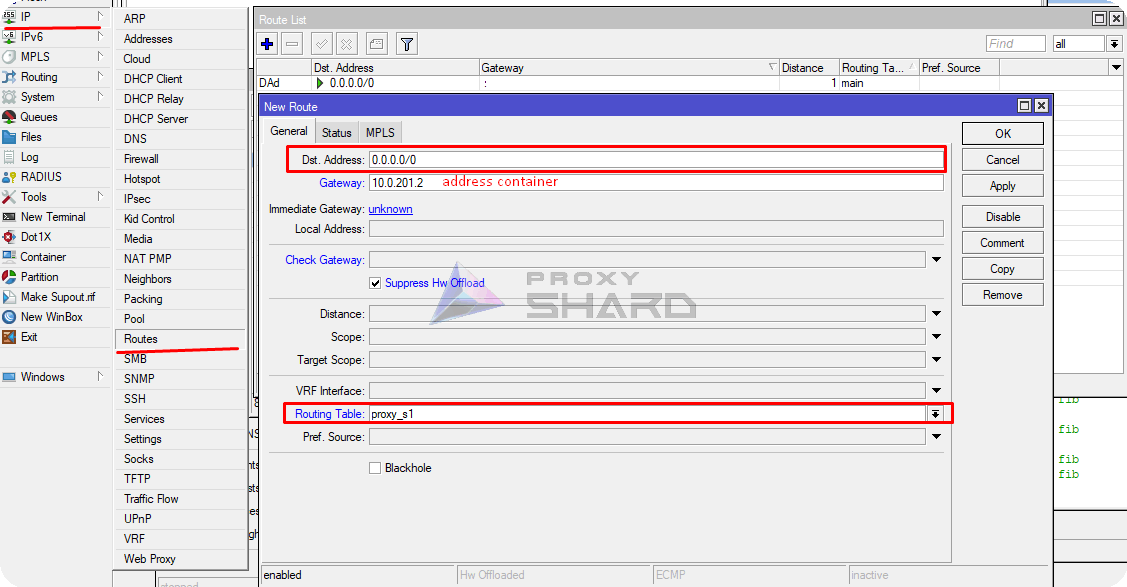

Add a default route to the container for future rules

/ip route
add disabled=no dst-address=0.0.0.0/0 gateway=10.0.201.2 routing-table=
proxy_s1 suppress-hw-offload=yes

1. Adding rules to redirect traffic to certain resources

To redirect traffic to a target resource through the proxy you need to create a static address list in "ip/firewall/address list"

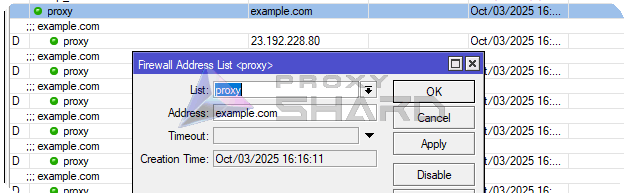

Suppose we want to open the site example.com through the proxy, create a list with an arbitrary name and specify the IP address of the resource or its domain

/ip firewall address-list
add address=example.com list=proxy

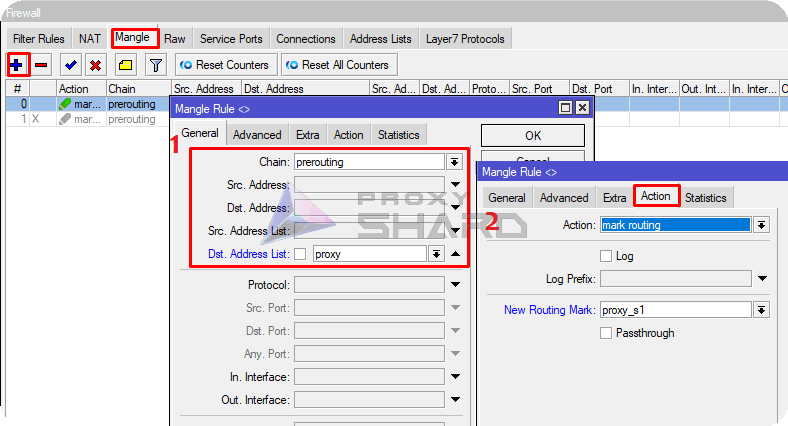

Next create a Mangle rule that marks all traffic to the specified resource and in the "Action" specify the new routing path that was created in the previous step.

/ip firewall mangle
add action=mark-routing chain=prerouting dst-address-list=proxy new-routing-mark=proxy_s1 passthrough=no

By analogy you can add other resources, for example YouTube:

List for Youtube

add address=142.250.184.0/24 comment=Youtube list=proxy add address=107.0.0.0/8 comment=Youtube list=proxy add address=142.250.185.0/24 comment=Youtube list=proxy add address=3.0.0.0/8 comment=Youtube list=proxy add address=216.58.212.0/24 comment=Youtube list=proxy add address=93.158.134.0/24 comment=Youtube list=proxy add address=74.125.71.0/24 comment=Youtube list=proxy add address=216.58.206.0/24 comment=Youtube list=proxy add address=142.250.186.0/24 comment=Youtube list=proxy add address=42.192.32.0/24 comment=Youtube list=proxy add address=74.125.206.0/24 comment=Youtube list=proxy add address=173.194.0.0/16 comment=Youtube list=proxy add address=172.217.0.0/16 comment=Youtube list=proxy add address=142.250.0.0/16 comment=Youtube list=proxy add address=74.125.0.0/16 comment=Youtube list=proxy add address=216.58.0.0/16 comment=Youtube list=proxy add address=74.0.0.0/8 comment=Youtube list=proxy add address=3.76.0.0/16 comment=Youtube list=proxy add address=3.78.0.0/16 comment=Youtube list=proxy add address=216.239.0.0/16 comment=Youtube list=proxy add address=64.233.0.0/16 comment=Youtube list=proxy add address=8.222.0.0/16 comment=Youtube list=proxy add address=107.155.0.0/16 comment=Youtube list=proxy add address=35.207.0.0/16 comment=Youtube list=proxy add address=3.66.0.0/16 comment=Youtube list=proxy add address=18.140.0.0/16 comment=Youtube list=proxy add address=23.2.0.0/16 comment=Youtube list=proxy add address=99.81.0.0/16 comment=Youtube list=proxy add address=54.0.0.0/16 comment=Youtube list=proxy add address=77.241.0.0/16 comment=Youtube list=proxy add address=108.177.0.0/16 comment=Youtube list=proxy add address=184.86.0.0/16 comment=Youtube list=proxy add address=52.0.0.0/16 comment=Youtube list=proxy add address=63.35.0.0/16 comment=Youtube list=proxy add address=101.34.0.0/16 comment=Youtube list=proxy add address=34.252.0.0/16 comment=Youtube list=proxy add address=45.57.0.0/16 comment=Youtube list=proxy add address=169.254.0.0/16 comment=Youtube list=proxy add address=34.0.0.0/16 comment=Youtube list=proxy add address=184.0.0.0/16 comment=Youtube list=proxy add address=87.0.0.0/16 comment=Youtube list=proxy add address=213.59.0.0/16 comment=Youtube list=proxy add address=157.240.247.174 comment=Instagram list=proxy add address=46.53.178.107 comment=Instagram list=proxy add address=179.60.195.174 comment=Instagram list=proxy add address=157.240.205.174 comment=Instagram list=proxy add address=31.13.24.0/21 comment=Instagram list=proxy add address=31.13.64.0/18 comment=Instagram list=proxy add address=45.64.40.0/22 comment=Instagram list=proxy add address=66.220.144.0/20 comment=Instagram list=proxy add address=69.63.176.0/20 comment=Instagram list=proxy add address=69.171.224.0/19 comment=Instagram list=proxy add address=74.119.76.0/22 comment=Instagram list=proxy add address=103.4.96.0/22 comment=Instagram list=proxy add address=129.134.0.0/16 comment=Instagram list=proxy add address=157.240.0.0/16 comment=Instagram list=proxy add address=173.252.64.0/18 comment=Instagram list=proxy add address=179.60.192.0/22 comment=Instagram list=proxy add address=185.60.216.0/22 comment=Instagram list=proxy add address=204.15.20.0/22 comment=Instagram list=proxy add address=157.240.200.63 comment=Instagram list=proxy add address=185.60.219.63 comment=Instagram list=proxy add address=129.134.31.12 comment=Instagram list=proxy add address=66.81.203.132 comment=Instagram list=proxy add address=185.89.218.12 comment=Instagram list=proxy add address=31.13.66.63 comment=Instagram list=proxy add address=84.15.65.162 comment=Instagram list=proxy add address=68.66.224.28 comment=Instagram list=proxy add address=157.240.253.63 comment=Instagram list=proxy add address=83.174.11.224 comment=Instagram list=proxy add address=157.240.9.52 comment=Instagram list=proxy add address=157.240.252.174 comment=Instagram list=proxy add address=157.240.195.63 comment=Instagram list=proxy add address=31.13.71.52 comment=Instagram list=proxy add address=57.144.110.192 comment=Instagram list=proxy add address=157.240.252.17 comment=Instagram list=proxy add address=84.15.66.97 comment=Instagram list=proxy add address=217.168.6.33 comment=Instagram list=proxy add address=31.13.83.52 comment=Instagram list=proxy add address=157.240.241.63 comment=Instagram list=proxy add address=129.134.30.12 comment=Instagram list=proxy add address=185.89.219.12 comment=Instagram list=proxy add address=157.240.252.10 comment=Instagram list=proxy add address=157.240.201.63 comment=Instagram list=proxy add address=66.81.203.197 comment=Instagram list=proxy add address=179.60.195.52 comment=Instagram list=proxy add address=66.81.203.7 comment=Instagram list=proxy add address=216.40.34.41 comment=Instagram list=proxy add address=157.240.202.63 comment=Instagram list=proxy add address=157.240.229.63 comment=Instagram list=proxy add address=157.240.252.63 comment=Instagram list=proxy add address=31.13.72.53 comment=Instagram list=proxy add address=124.108.16.224 comment=Instagram list=proxy add address=157.240.205.63 comment=Instagram list=proxy add address=92.46.37.96 comment=Instagram list=proxy add address=157.240.247.63 comment=Instagram list=proxy add address=157.240.234.63 comment=Instagram list=proxy add address=157.240.235.63 comment=Instagram list=proxy add address=87.245.208.97 comment=Instagram list=proxy add address=216.58.192.0/19 comment=Instagram list=proxy add address=209.85.128.0/17 comment=Instagram list=proxy add address=198.105.240.0/20 comment=Instagram list=proxy add address=142.250.0.0/15 comment=Instagram list=proxy add address=108.177.0.0/17 comment=Instagram list=proxy add address=87.245.197.140 comment=Instagram list=proxy add address=64.233.160.0/19 comment=Instagram list=proxy add address=157.240.0.1 comment=Instagram list=proxy add address=157.240.238.63 comment=Instagram list=proxy add address=157.240.238.174 comment=Instagram list=proxy add address=157.240.0.63 comment=Instagram list=proxy add address=157.240.224.63 comment=Instagram list=proxy add address=157.240.224.174 comment=Instagram list=proxy add address=157.240.251.36 comment=Instagram list=proxy add address=157.240.253.12 comment=Instagram list=proxy add address=157.240.253.35 comment=Instagram list=proxy add address=157.240.238.13 comment=Instagram list=proxy add address=157.240.238.56 comment=Instagram list=proxy add address=157.240.238.175 comment=Instagram list=proxy add address=57.144.112.141 comment=Instagram list=proxy add address=157.240.251.60 comment=Instagram list=proxy add address=157.240.251.128 comment=Instagram list=proxy add address=157.240.238.5 comment=Instagram list=proxy add address=157.240.253.13 comment=Instagram list=proxy add address=157.240.253.5 comment=Instagram list=proxy add address=157.240.238.2 comment=Instagram list=proxy add address=157.240.238.37 comment=Instagram list=proxy add address=157.240.251.5 comment=Instagram list=proxy add address=157.240.251.34 comment=Instagram list=proxy add address=57.144.112.1 comment=Instagram list=proxy add address=157.240.238.54 comment=Instagram list=proxy add address=129.134.26.123 comment=Instagram list=proxy add address=157.240.252.3 comment=Instagram list=proxy add address=31.13.84.4 comment=Instagram list=proxy add address=157.240.224.12 comment=Instagram list=proxy add address=157.240.238.4 comment=Instagram list=proxy add address=157.240.0.13 comment=Instagram list=proxy add address=3.33.139.32 comment=Instagram list=proxy add address=157.240.0.35 comment=Instagram list=proxy add address=157.240.238.14 comment=Instagram list=proxy add address=157.240.238.60 comment=Instagram list=proxy add address=57.144.112.145 comment=Instagram list=proxy add address=157.240.251.35 comment=Instagram list=proxy add address=157.240.0.21 comment=Instagram list=proxy add address=54.155.178.5 comment=Netflix list=proxy add address=3.251.50.149 comment=Netflix list=proxy add address=54.74.73.31 comment=Netflix list=proxy add address=52.1.147.205 comment=Netflix list=proxy add address=107.20.175.192 comment=Netflix list=proxy add address=50.17.247.9 comment=Netflix list=proxy add address=204.236.236.127 comment=Netflix list=proxy add address=52.6.46.142 comment=Netflix list=proxy add address=18.236.7.30 comment=Netflix list=proxy add address=52.4.175.111 comment=Netflix list=proxy add address=100.82.106.206 comment=Netflix list=proxy add address=100.85.59.120 comment=Netflix list=proxy add address=46.137.171.215 comment=Netflix list=proxy add address=34.218.19.240 comment=Netflix list=proxy add address=44.226.113.145 comment=Netflix list=proxy add address=52.1.119.170 comment=Netflix list=proxy add address=52.214.181.141 comment=Netflix list=proxy add address=207.45.72.215 comment=Netflix list=proxy add address=100.82.180.182 comment=Netflix list=proxy add address=54.246.79.9 comment=Netflix list=proxy add address=52.4.38.70 comment=Netflix list=proxy add address=52.4.225.124 comment=Netflix list=proxy add address=52.4.240.221 comment=Netflix list=proxy add address=52.1.173.203 comment=Netflix list=proxy add address=52.0.16.118 comment=Netflix list=proxy add address=52.6.3.192 comment=Netflix list=proxy add address=34.252.74.1 comment=Netflix list=proxy add address=52.4.145.119 comment=Netflix list=proxy add address=52.5.181.79 comment=Netflix list=proxy add address=54.170.196.176 comment=Netflix list=proxy add address=52.31.48.193 comment=Netflix list=proxy add address=23.246.0.0/18 comment=Netflix list=proxy add address=37.77.184.0/21 comment=Netflix list=proxy add address=45.57.0.0/17 comment=Netflix list=proxy add address=64.120.128.0/17 comment=Netflix list=proxy add address=66.197.128.0/17 comment=Netflix list=proxy add address=108.175.32.0/20 comment=Netflix list=proxy add address=185.2.220.0/22 comment=Netflix list=proxy add address=185.9.188.0/22 comment=Netflix list=proxy add address=192.173.64.0/18 comment=Netflix list=proxy add address=198.38.96.0/19 comment=Netflix list=proxy add address=198.45.48.0/20 comment=Netflix list=proxy add address=198.45.56.0/21 comment=Netflix list=proxy add address=208.75.76.0/22 comment=Netflix list=proxy add address=209.237.204.128 comment=Twitter list=proxy add address=3.64.163.50 comment=Twitter list=proxy add address=104.244.42.2 comment=Twitter list=proxy add address=209.237.197.128 comment=Twitter list=proxy add address=188.40.44.177 comment=Twitter list=proxy add address=34.254.1.203 comment=Twitter list=proxy add address=108.186.36.25 comment=Twitter list=proxy add address=69.195.160.128 comment=Twitter list=proxy add address=69.195.176.128 comment=Twitter list=proxy add address=23.1.99.237 comment=Twitter list=proxy add address=93.184.220.70 comment=Twitter list=proxy add address=34.251.129.198 comment=Twitter list=proxy add address=209.237.196.128 comment=Twitter list=proxy add address=172.67.70.184 comment=Twitter list=proxy add address=104.26.0.84 comment=Twitter list=proxy add address=104.244.42.84 comment=Twitter list=proxy add address=151.101.0.159 comment=Twitter list=proxy add address=209.237.192.128 comment=Twitter list=proxy add address=104.26.1.84 comment=Twitter list=proxy add address=199.232.188.159 comment=Twitter list=proxy add address=3.248.100.228 comment=Twitter list=proxy add address=104.244.45.3 comment=Twitter list=proxy add address=104.244.42.193 comment=Twitter list=proxy add address=104.244.42.129 comment=Twitter list=proxy add address=69.195.177.128 comment=Twitter list=proxy add address=151.101.64.159 comment=Twitter list=proxy add address=209.237.194.128 comment=Twitter list=proxy add address=104.26.5.149 comment=Twitter list=proxy add address=104.244.42.196 comment=Twitter list=proxy add address=104.244.42.194 comment=Twitter list=proxy add address=23.1.106.237 comment=Twitter list=proxy add address=185.199.110.153 comment=Twitter list=proxy add address=209.237.199.128 comment=Twitter list=proxy add address=69.195.180.128 comment=Twitter list=proxy add address=151.101.192.159 comment=Twitter list=proxy add address=209.237.203.128 comment=Twitter list=proxy add address=209.237.193.128 comment=Twitter list=proxy add address=69.195.182.128 comment=Twitter list=proxy add address=104.244.42.67 comment=Twitter list=proxy add address=52.30.155.196 comment=Twitter list=proxy add address=52.214.101.56 comment=Twitter list=proxy add address=69.195.165.128 comment=Twitter list=proxy add address=104.244.42.148 comment=Twitter list=proxy add address=104.244.42.195 comment=Twitter list=proxy add address=104.244.42.66 comment=Twitter list=proxy add address=104.244.42.1 comment=Twitter list=proxy add address=185.199.111.153 comment=Twitter list=proxy add address=69.195.187.128 comment=Twitter list=proxy add address=104.244.42.130 comment=Twitter list=proxy add address=104.244.42.3 comment=Twitter list=proxy add address=185.199.108.153 comment=Twitter list=proxy add address=104.244.42.4 comment=Twitter list=proxy add address=69.195.168.128 comment=Twitter list=proxy add address=209.237.200.128 comment=Twitter list=proxy add address=209.237.201.128 comment=Twitter list=proxy add address=104.244.42.68 comment=Twitter list=proxy add address=69.195.186.128 comment=Twitter list=proxy add address=34.243.204.245 comment=Twitter list=proxy add address=152.199.21.141 comment=Twitter list=proxy add address=93.184.221.165 comment=Twitter list=proxy add address=192.229.233.25 comment=Twitter list=proxy add address=172.67.74.16 comment=Twitter list=proxy add address=209.237.195.128 comment=Twitter list=proxy add address=69.195.181.128 comment=Twitter list=proxy add address=69.195.163.128 comment=Twitter list=proxy add address=104.244.42.72 comment=Twitter list=proxy add address=69.195.185.128 comment=Twitter list=proxy add address=34.242.228.15 comment=Twitter list=proxy add address=104.26.4.149 comment=Twitter list=proxy add address=69.195.162.128 comment=Twitter list=proxy add address=69.195.178.128 comment=Twitter list=proxy add address=151.101.128.159 comment=Twitter list=proxy add address=104.244.42.131 comment=Twitter list=proxy add address=69.195.184.128 comment=Twitter list=proxy add address=69.195.183.128 comment=Twitter list=proxy add address=69.195.171.128 comment=Twitter list=proxy add address=213.230.209.101 comment=Twitter list=proxy add address=69.195.174.128 comment=Twitter list=proxy add address=146.75.120.158 comment=Twitter list=proxy add address=104.244.42.65 comment=Twitter list=proxy add address=69.195.166.128 comment=Twitter list=proxy add address=185.199.109.153 comment=Twitter list=proxy add address=104.244.42.212 comment=Twitter list=proxy add address=95.173.103.16 comment=Twitter list=proxy add address=104.244.42.132 comment=Twitter list=proxy add address=69.195.179.128 comment=Twitter list=proxy add address=104.244.43.131 comment=Twitter list=proxy add address=69.195.169.128 comment=Twitter list=proxy add address=188.114.98.224 comment=ChatGPT list=proxy add address=18.66.147.35 comment=ChatGPT list=proxy add address=104.18.7.192 comment=ChatGPT list=proxy add address=188.114.99.238 comment=ChatGPT list=proxy add address=104.18.27.221 comment=ChatGPT list=proxy add address=104.18.30.2 comment=ChatGPT list=proxy add address=104.18.41.241 comment=ChatGPT list=proxy add address=188.114.98.238 comment=ChatGPT list=proxy add address=188.114.99.235 comment=ChatGPT list=proxy add address=188.114.98.235 comment=ChatGPT list=proxy add address=104.18.26.221 comment=ChatGPT list=proxy add address=104.18.33.45 comment=ChatGPT list=proxy add address=18.66.147.69 comment=ChatGPT list=proxy add address=104.18.7.87 comment=ChatGPT list=proxy add address=104.18.17.170 comment=ChatGPT list=proxy add address=104.18.7.201 comment=ChatGPT list=proxy add address=184.105.99.79 comment=ChatGPT list=proxy add address=18.66.147.112 comment=ChatGPT list=proxy add address=172.64.146.15 comment=ChatGPT list=proxy add address=142.250.186.115 comment=ChatGPT list=proxy add address=104.18.6.192 comment=ChatGPT list=proxy add address=104.18.6.87 comment=ChatGPT list=proxy add address=23.35.228.138 comment=ChatGPT list=proxy add address=18.66.147.17 comment=ChatGPT list=proxy add address=104.18.8.73 comment=ChatGPT list=proxy add address=13.107.246.60 comment=ChatGPT list=proxy add address=20.118.40.5 comment=ChatGPT list=proxy add address=104.18.9.73 comment=ChatGPT list=proxy add address=104.18.16.170 comment=ChatGPT list=proxy add address=172.64.154.211 comment=ChatGPT list=proxy add address=104.18.31.2 comment=ChatGPT list=proxy add address=104.18.6.201 comment=ChatGPT list=proxy add address=8.8.4.0/24 comment=Youtube list=proxy add address=8.8.8.0/24 comment=Youtube list=proxy add address=8.34.208.0/20 comment=Youtube list=proxy add address=8.35.192.0/20 comment=Youtube list=proxy add address=23.236.48.0/20 comment=Youtube list=proxy add address=23.251.128.0/19 comment=Youtube list=proxy add address=34.0.0.0/15 comment=Youtube list=proxy add address=34.2.0.0/16 comment=Youtube list=proxy add address=34.3.0.0/23 comment=Youtube list=proxy add address=34.3.3.0/24 comment=Youtube list=proxy add address=34.3.4.0/24 comment=Youtube list=proxy add address=34.3.8.0/21 comment=Youtube list=proxy add address=34.3.16.0/20 comment=Youtube list=proxy add address=34.3.32.0/19 comment=Youtube list=proxy add address=34.3.64.0/18 comment=Youtube list=proxy add address=34.4.0.0/14 comment=Youtube list=proxy add address=34.8.0.0/13 comment=Youtube list=proxy add address=34.16.0.0/12 comment=Youtube list=proxy add address=34.32.0.0/11 comment=Youtube list=proxy add address=34.64.0.0/10 comment=Youtube list=proxy add address=34.128.0.0/10 comment=Youtube list=proxy add address=35.184.0.0/13 comment=Youtube list=proxy add address=35.192.0.0/14 comment=Youtube list=proxy add address=35.196.0.0/15 comment=Youtube list=proxy add address=35.198.0.0/16 comment=Youtube list=proxy add address=35.199.0.0/17 comment=Youtube list=proxy add address=35.199.128.0/18 comment=Youtube list=proxy add address=35.200.0.0/13 comment=Youtube list=proxy add address=35.208.0.0/12 comment=Youtube list=proxy add address=35.224.0.0/12 comment=Youtube list=proxy add address=35.240.0.0/13 comment=Youtube list=proxy add address=57.140.192.0/18 comment=Youtube list=proxy add address=64.15.112.0/20 comment=Youtube list=proxy add address=66.22.228.0/23 comment=Youtube list=proxy add address=66.102.0.0/20 comment=Youtube list=proxy add address=66.249.64.0/19 comment=Youtube list=proxy add address=70.32.128.0/19 comment=Youtube list=proxy add address=72.14.192.0/18 comment=Youtube list=proxy add address=104.154.0.0/15 comment=Youtube list=proxy add address=104.196.0.0/14 comment=Youtube list=proxy add address=104.237.160.0/19 comment=Youtube list=proxy add address=107.167.160.0/19 comment=Youtube list=proxy add address=107.178.192.0/18 comment=Youtube list=proxy add address=108.59.80.0/20 comment=Youtube list=proxy add address=108.170.192.0/18 comment=Youtube list=proxy add address=130.211.0.0/16 comment=Youtube list=proxy add address=136.22.160.0/20 comment=Youtube list=proxy add address=136.22.176.0/21 comment=Youtube list=proxy add address=136.22.184.0/23 comment=Youtube list=proxy add address=136.22.186.0/24 comment=Youtube list=proxy add address=146.148.0.0/17 comment=Youtube list=proxy add address=152.65.208.0/22 comment=Youtube list=proxy add address=152.65.214.0/23 comment=Youtube list=proxy add address=152.65.218.0/23 comment=Youtube list=proxy add address=152.65.222.0/23 comment=Youtube list=proxy add address=152.65.224.0/19 comment=Youtube list=proxy add address=162.120.128.0/17 comment=Youtube list=proxy add address=162.216.148.0/22 comment=Youtube list=proxy add address=162.222.176.0/21 comment=Youtube list=proxy add address=172.110.32.0/21 comment=Youtube list=proxy add address=172.253.0.0/16 comment=Youtube list=proxy add address=173.255.112.0/20 comment=Youtube list=proxy add address=192.158.28.0/22 comment=Youtube list=proxy add address=192.178.0.0/15 comment=Youtube list=proxy add address=193.186.4.0/24 comment=Youtube list=proxy add address=199.36.154.0/23 comment=Youtube list=proxy add address=199.36.156.0/24 comment=Youtube list=proxy add address=199.192.112.0/22 comment=Youtube list=proxy add address=199.223.232.0/21 comment=Youtube list=proxy add address=207.223.160.0/20 comment=Youtube list=proxy add address=208.65.152.0/22 comment=Youtube list=proxy add address=208.68.108.0/22 comment=Youtube list=proxy add address=208.81.188.0/22 comment=Youtube list=proxy add address=208.117.224.0/19 comment=Youtube list=proxy add address=216.73.80.0/20 comment=Youtube list=proxy add address=216.239.32.0/19 comment=Youtube list=proxy add address=108.156.0.0/15 comment=Youtube list=proxy add address=52.0.0.0/8 comment=Youtube list=proxy add address=44.0.0.0/8 comment=Youtube list=proxy add address=13.224.0.0/12 comment=Youtube list=proxy add address=18.66.0.0/16 comment=Youtube list=proxy add address=3.126.0.0/16 comment=Youtube list=proxy add address=3.164.0.0/16 comment=Youtube list=proxy add address=3.220.0.0/16 comment=Youtube list=proxy add address=3.251.0.0/16 comment=Youtube list=proxy add address=3.77.0.0/16 comment=Youtube list=proxy add address=34.208.0.0/13 comment=Youtube list=proxy add address=34.240.0.0/13 comment=Youtube list=proxy add address=35.160.0.0/13 comment=Youtube list=proxy add address=35.80.0.0/13 comment=Youtube list=proxy add address=44.192.0.0/10 comment=Youtube list=proxy add address=44.224.0.0/12 comment=Youtube list=proxy add address=46.137.0.0/16 comment=Youtube list=proxy add address=52.12.0.0/15 comment=Youtube list=proxy add address=52.16.0.0/14 comment=Youtube list=proxy add address=52.208.0.0/13 comment=Youtube list=proxy add address=52.30.0.0/16 comment=Youtube list=proxy add address=52.31.0.0/16 comment=Youtube list=proxy add address=52.36.0.0/14 comment=Youtube list=proxy add address=52.40.0.0/14 comment=Youtube list=proxy add address=52.58.0.0/15 comment=Youtube list=proxy add address=54.154.0.0/16 comment=Youtube list=proxy add address=54.186.0.0/15 comment=Youtube list=proxy add address=54.228.0.0/15 comment=Youtube list=proxy add address=54.246.0.0/16 comment=Youtube list=proxy add address=54.74.0.0/16 comment=Youtube list=proxy add address=54.76.0.0/15 comment=Youtube list=proxy add address=194.190.76.0/23 comment=Youtube list=proxy add address=194.90.196.0/23 comment=Youtube list=proxy add address=212.143.192.0/19 comment=Youtube list=proxy add address=194.90.0.0/16 comment=Youtube list=proxy add address=46.134.192.0/18 comment=Youtube list=proxy add address=255.255.255.255 comment=Youtube list=proxy add address=104.16.0.0/12 comment=Youtube list=proxy add address=104.17.0.0/20 comment=Youtube list=proxy add address=172.64.0.0/13 comment=Youtube list=proxy add address=188.114.96.0/20 comment=Youtube list=proxy add address=80.67.32.0/19 comment=Youtube list=proxy add address=185.199.108.0/22 comment=Youtube list=proxy add address=224.0.0.0/4 comment=Youtube list=proxy add address=239.0.0.0/8 comment=Youtube list=proxy add address=51.89.0.0/16 comment=Youtube list=proxy add address=178.154.128.0/17 comment=Youtube list=proxy add address=5.255.248.0/21 comment=Youtube list=proxy add address=87.250.224.0/19 comment=Youtube list=proxy

It is worth noting that not all resources can resolve all addresses via a domain in full, as in the example with example.com, so you need to specify the full list of static IPv4 addresses as in the YouTube example. Otherwise part of the site's/resource's traffic will not go through the proxy or may operate incorrectly; for other resources you can search the static address list on the Internet.

1. Adding rules to redirect all traffic of devices or the network

To redirect specific devices or the entire network you need to create a Mangle rule with a clear specification of the source. Suppose there is a device in the network with address 10.0.201.244, and we want its traffic to go through the proxy, then you need to create the following rule:

/ip firewall mangle
add action=mark-routing chain=prerouting src-address=10.0.201.244 new-routing-mark=proxy_s1 passthrough=no

As src-address you can specify either an entire subnet or individual hosts, for example src-address=192.168.0.0/24. Thus all traffic from the specified addresses/networks will go only through the proxy.

Done! Now you can use the proxy on the router, flexibly managing the traffic of devices on your network.
