# ProxyCap

{% hint style="success" %}
This solution supports UDP tunneling!
{% endhint %}

{% hint style="info" %}
This program is outdated and paid; its trial period is 30 days
{% endhint %}

## Installing ProxyCap**.**

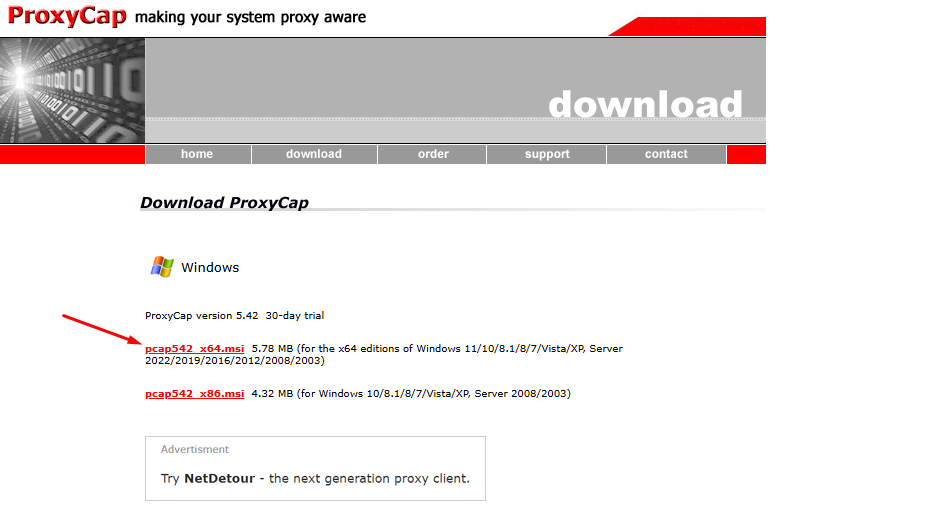

Go to [link](https://www.proxycap.com/download.html) to download ProxyCap

Install it and then launch the program.<br>

<figure><img src="https://3044836706-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3l0uO4OV4DD1gK4uKGC6%2Fuploads%2Fgit-blob-763e6d989f74867df224db56ee0cbae62cb79935%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

## **Configuration** ProxyCap

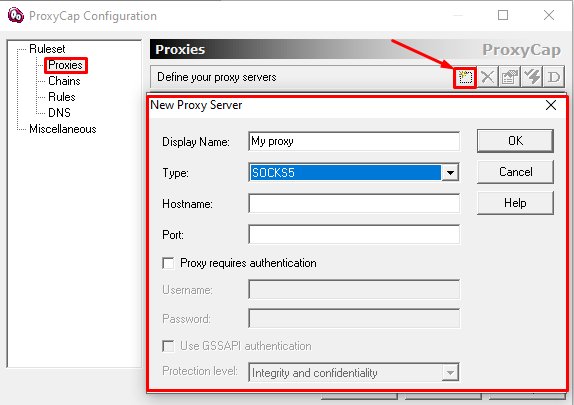

Then go to the tab <mark style="color:purple;">Proxies</mark> and add a new connection via the icon ![](https://3044836706-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3l0uO4OV4DD1gK4uKGC6%2Fuploads%2Fgit-blob-7af1256ab276bd7482f5037dda347e017521fddc%2Fimage.png?alt=media)

<figure><img src="https://3044836706-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3l0uO4OV4DD1gK4uKGC6%2Fuploads%2Fgit-blob-e7c01ac053bf482bd67a19eea70bb7141689134c%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

## **Connection profile setup**

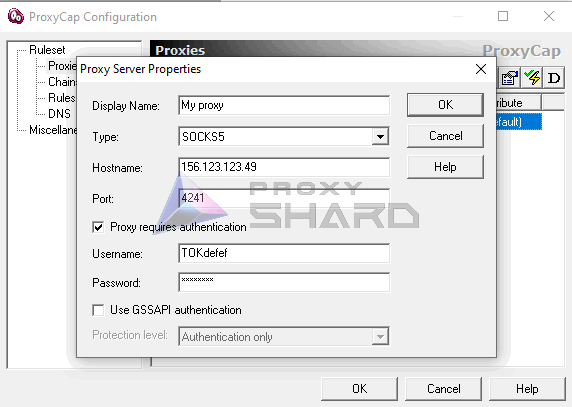

Specify the proxy from the order in the corresponding fields

<figure><img src="https://3044836706-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3l0uO4OV4DD1gK4uKGC6%2Fuploads%2Fgit-blob-370eff8e84b6233bfd5b9fe31e03a76c8799f04f%2FImage00001.PNG?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
**An example of proxy setup can be found in the section "**[**Setup instructions**](https://docs.proxyshard.com/eng/user-guide/getting-started)**"**
{% endhint %}

## **Routing rules setup**

For the proxy to work, it is mandatory to add a routing rule.

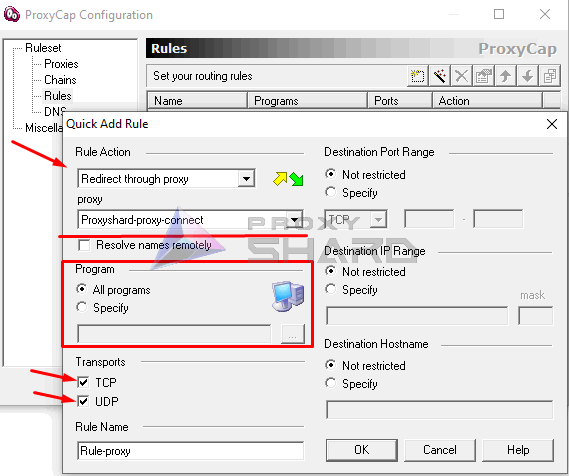

To add rules, open the "<mark style="color:purple;">Rules</mark>" tab and set the settings as in the screenshot, обязательно setting <mark style="color:purple;">Rule Action</mark>, <mark style="color:purple;">Proxy</mark> and the other parameters as needed.

You can set up separate proxying for processes by specifying the program path in the field <mark style="color:purple;">Program</mark>

<figure><img src="https://3044836706-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3l0uO4OV4DD1gK4uKGC6%2Fuploads%2Fgit-blob-3d8c41a322dc0723cdca0d019d2fab48a07be4f5%2FImage00003.PNG?alt=media" alt=""><figcaption></figcaption></figure>

**Done! Now you can start using it!**
